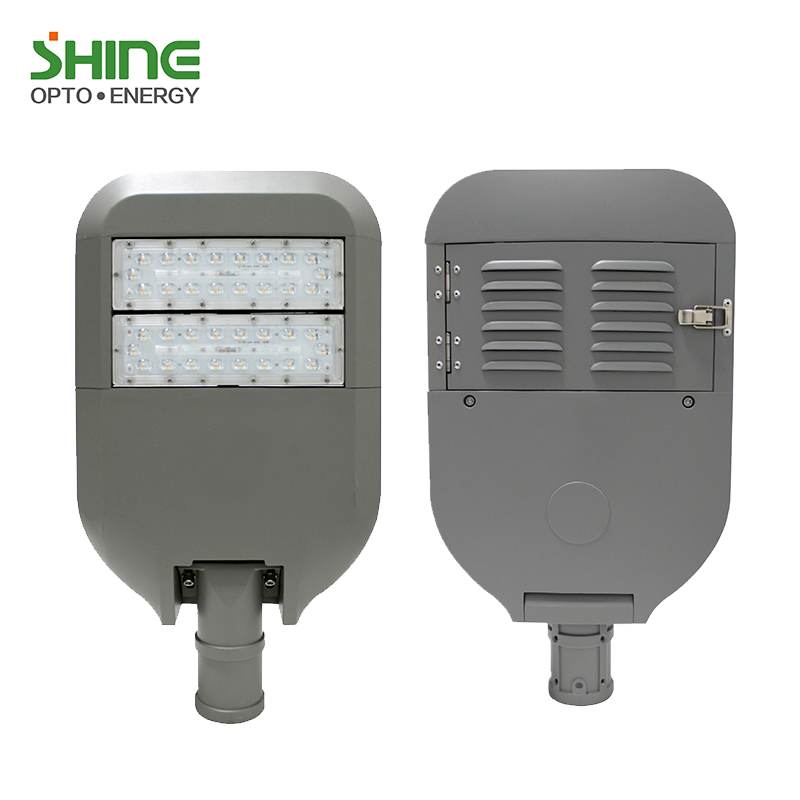

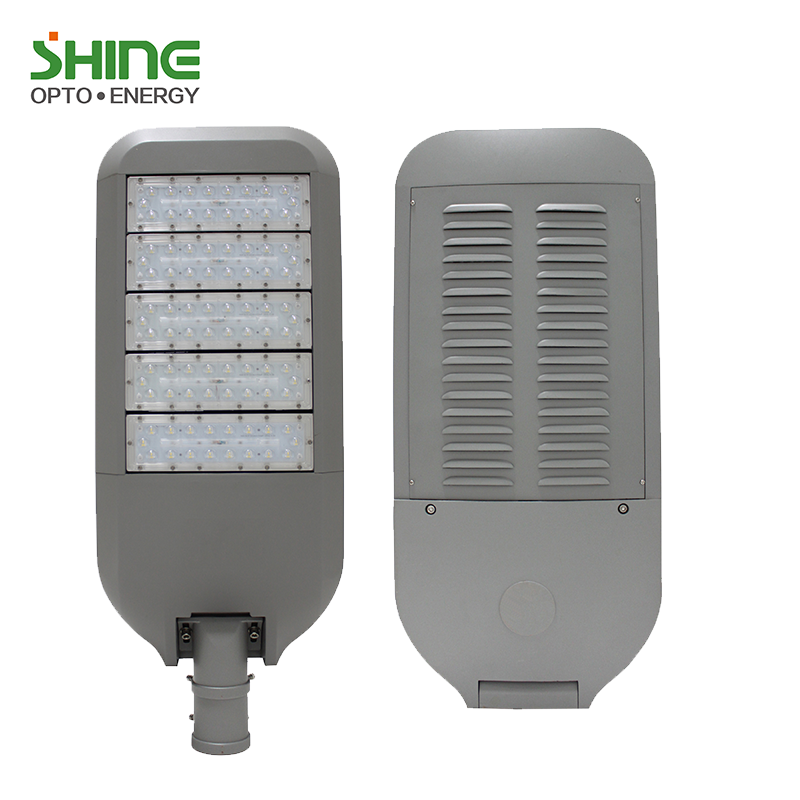

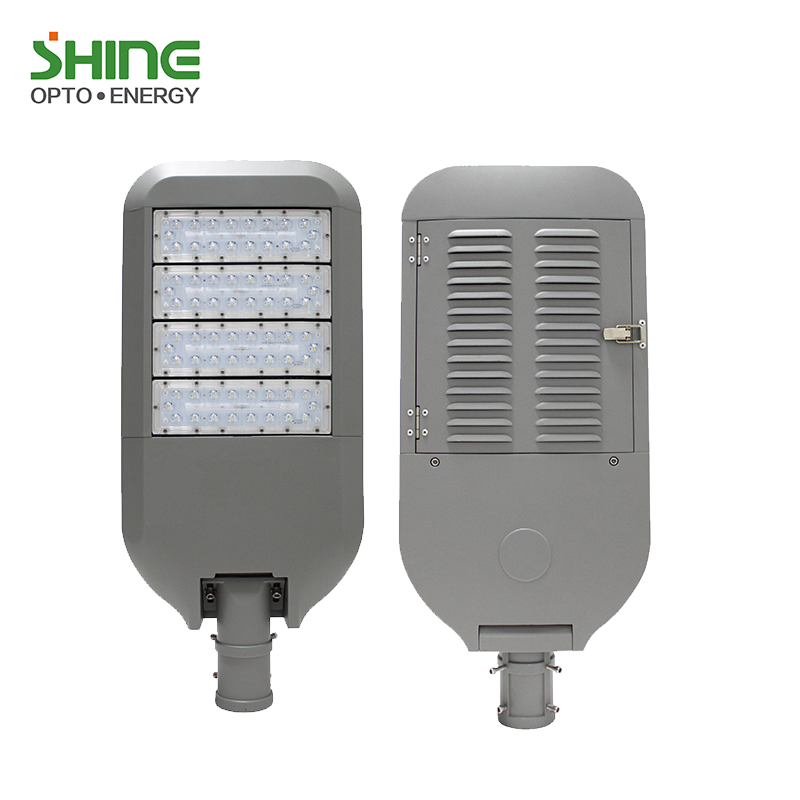

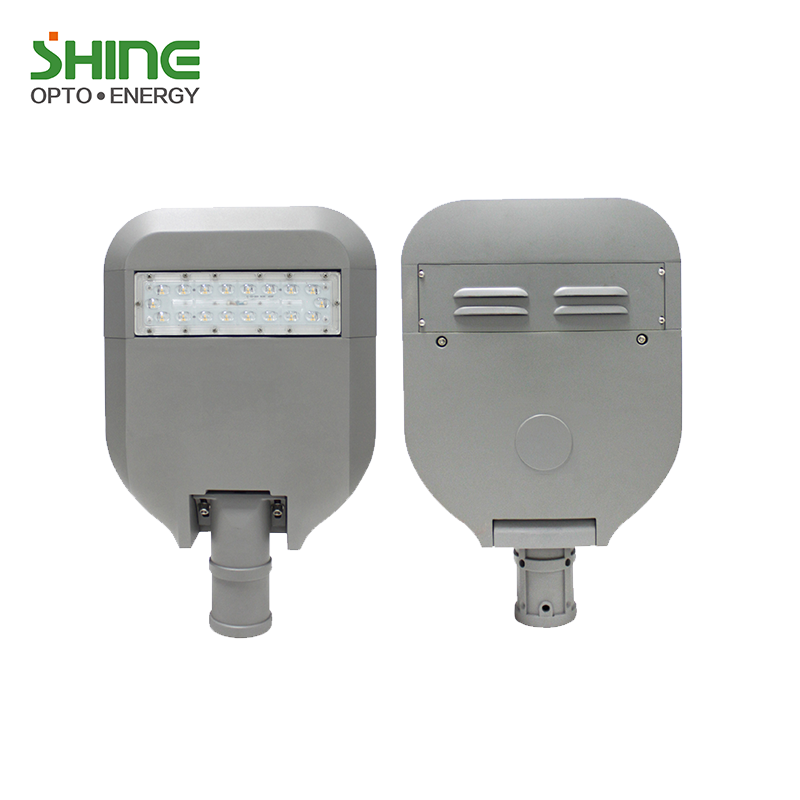

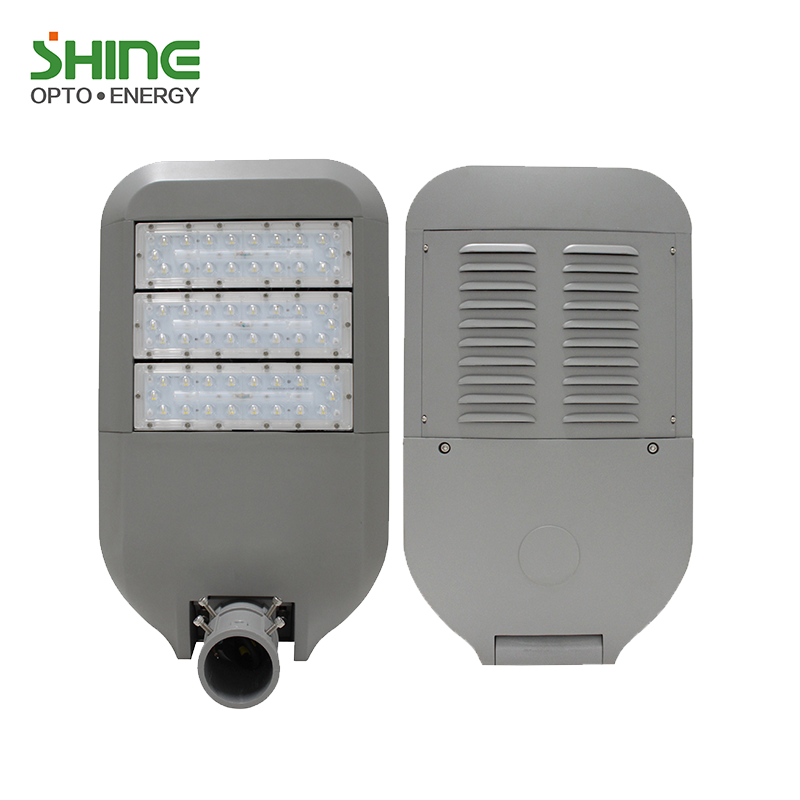

SH01 series LED MODULAR street light are ultimate replacement street light fixtures.lt is suitable for high temperature rangeshigh dust level and humidity. SH01 series LED MODULAR street light has
been developed to ensure maximum energy effciency in combination with modern technologies in lighting regulation.

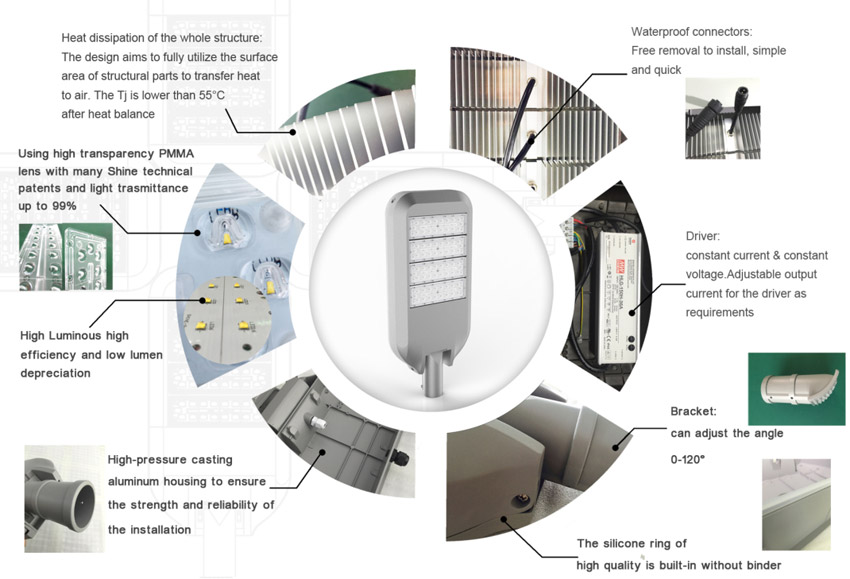

Main Features
• High intensity die-cast aluminum body.

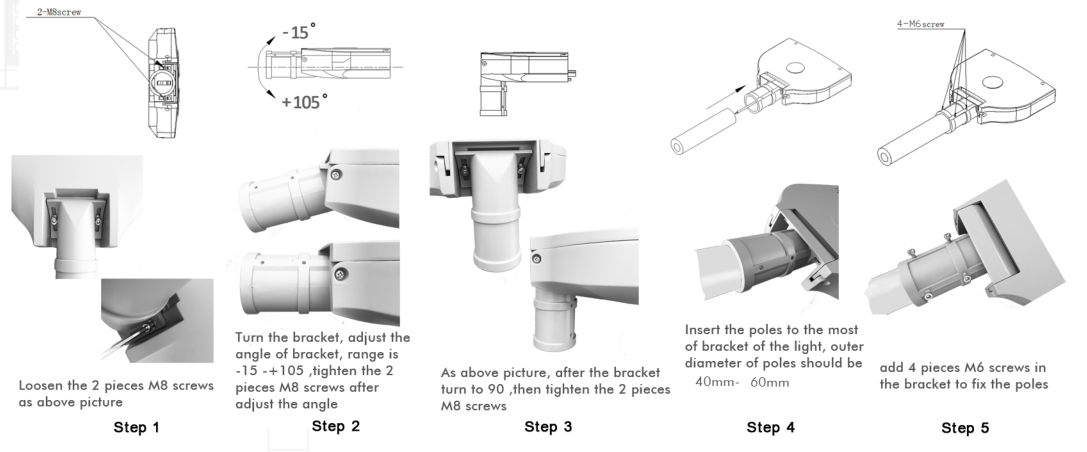

• 0-1200angle adjustable and applicable different mounting arm.
• Replaceable and upgradeable modular designeasy assemblyeasy installation and easy maintenance.
• High luminous flux 130-150Im/W.

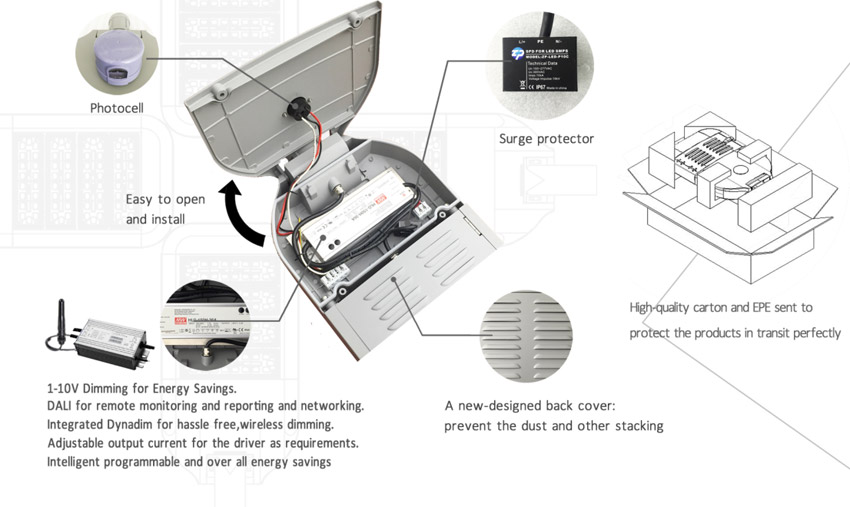

• Photocell,Surge protector, Wireless single lamp controller optional.

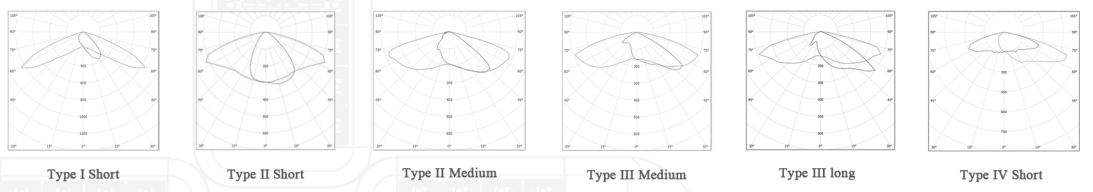

• The complete optical designscan reach the lighting demand of the various optical applications.
SHOl series street lights are designed by Shine engineer R&D teams based
on the outdoor application's demand of Led Street light adopting many Shine
technical patents and special materials and after using of harsh env ronmental testing thus coming out such a perfect street light with simple appearance easy to install no
tool maintenance and long life span.

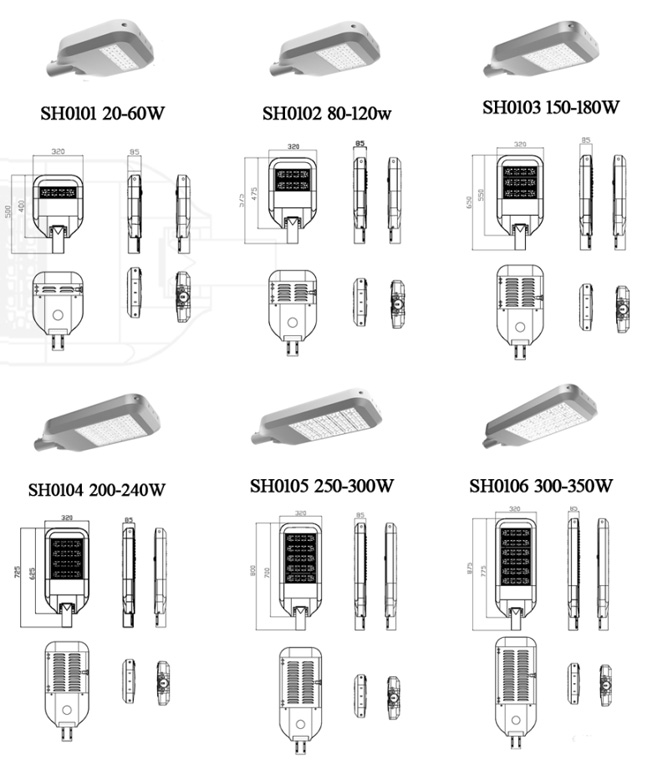

| Item | Power/W | Modele QTY | NW/Kg | IP Rating | Size/MM | CTN Size/MM |
| SH0101 | 20-60 | 1 | 5.6 | IP68 | 500*320*85 | 570*390*160 |
| SH0102 | 80-120 | 2 | 7.0 | IP68 | 575*320*85 | 645*390*160 |
| SH0103 | 150-180 | 3 | 8.3 | IP68 | 650*320*85 | 645*390*160 |
| SH0104 | 200-240 | 4 | 9.4 | IP68 | 725*320*85 | 645*390*160 |
| SH0105 | 250-300 | 5 | 10.6 | IP68 | 800*320*85 | 645*390*160 |
| SH0106 | 300-350 | 6 | 11.8 | IP68 | 875*320*85 | 645*390*160 |
