MS0301

The LED module is developed by the SHINE OPTO R&D engineers team, according to the requirements and development of outdoor lighting market. It has many different optical designs with SHINE OPTO's proprietary technology, optimized the structure of heat radiation, can widely lower down the Tj, with the high luminous output. It also adopts standard electric connector, which can match customers' different requirements on housing designs, such as street lights, tunnel lights, spot/flood lights, high bay lights and etc

Material：

●    6063   aluminum alloy material by special processing, conductivity factor   reached245W/(M.K)

●    Aluminium PCB board's   thermal conductivity 2.0

●    Rubber cable

●    304 Stainless steel screw

●    High efficiency flux   lenses

●    Bridgelux,San'an   5050,warranty&life span>50000hs

Size：

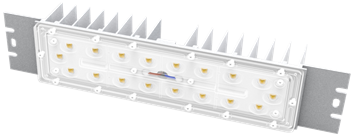

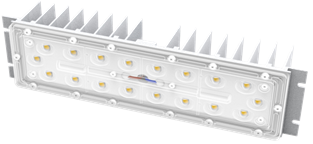

            MS0301A                                                    MS0301B

Technical Parameters

Break Up The Figure

          Type II short          Type II Medium       Type III Medium               60°                        90°

Tj  Flux  Current Graph

1, Based on Bridgelux led module testing result.

A: Relative luminous flux   B: Forward current                        A: Relative luminous flux   B: Tj

Note

1, The parameters for LED modules are all testing under the condition of RH 85%.

2, The tolerance of luminous flux, power and current value<±5%.

3, All the materials of module meet ROHS standard.

4, The design and parameter of this module meet UL, DLC, TUV, ENEC, VDE, CB, ERP and other demonstration requirements.

5, The design of this module used a number of SHINE patented technology, please do not fake.

6, Do not close to look at working LED directly.

7, The module warranty terms are based on the parameter working condition listed in this specifications
